In hard rock nothing bores tunnel faster than a Main Beam TBM.
If you want to bore a tunnel through hard rock in the shortest time possible, then the Robbins Main Beam TBM is the right solution. Get the best machine for the job and the most experienced team working with you. The results will be greater reliability, higher advance rates, and record-breaking performance.
What is a Main Beam TBM?

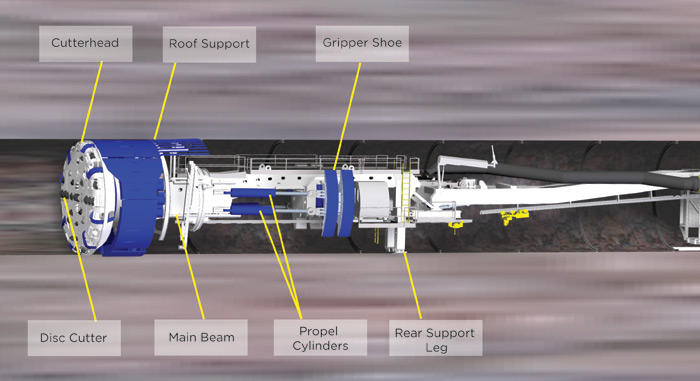

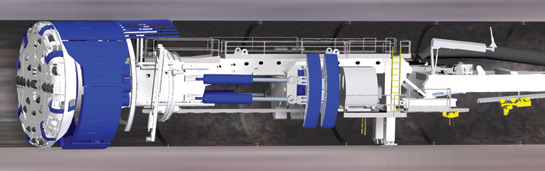

A Robbins Main Beam TBM is complex in its design, yet relatively simple in concept. The front of the TBM is a rotating cutterhead that matches the diameter of the tunnel. The cutterhead holds disc cutters (ranging from 11″ to 20″ in diameter) which are positioned for optimal boring of the given rock type. As the cutterhead turns, hydraulic propel cylinders push the cutters into the rock. The transfer of this high thrust through the rolling disc cutters creates fractures in the rock causing chips to break away from the tunnel face. A unique floating gripper system pushes on the sidewalls and is locked in place while the propel cylinders extend, allowing the main beam to advance the TBM. The machine can be continuously steered while gripper shoes push on the sidewalls to react the machine’s forward thrust. Buckets in the rotating cutterhead scoop up and deposit the muck on to a belt conveyor inside the main beam. The muck is then transferred to the rear of the machine for removal from the tunnel. At the end of a stroke the rear legs of the machine are lowered, the grippers and propel cylinders are retracted. The retraction of the propel cylinders repositions the gripper assembly for the next boring cycle. The grippers are extended, the rear legs lifted, and boring begins again.
A Main Beam TBM’s open design allows quick access directly behind the cutterhead for the installation of rock support (rock bolts, steel mesh, ring beams, and shotcrete), making it an ideal solution for unlined tunnels. The reliable Main Beam design reduces maintenance and maximizes boring time. This reliability explains why Robbins Main Beam TBMs set so many tunneling records and why so many others attempt to copy its design.
Robbins Main Beam TBMs are suitable for competent to slightly fractured rock. We design the machine to your tunnel specifications in diameters from 3 to 15 m (10 to 50 ft). This range is constantly being extended for new applications.
Main Beam Machine Features
All Robbins Main Beam machines are equipped with:
Depending on project geology Robbins Main Beam TBMs can be equipped with:
Robbins designs TBMs to meet the criteria of each specific project, including the geologic conditions, tunnel design, construction plan, project schedule, site logistics and many other factors. When you contact Robbins, we review your project specifications in order to determine the best tunneling system for your project. In some cases, an entirely new tunnel boring machine will be the answer and on other projects, the best decision may be to refurbish an existing TBM, to save you time and cost.
To learn more about Robbins’ past projects, search our Project Results section. This section will give you an idea of what history-making successes we have accomplished in the past and how our innovative solutions can make your next project a success.
Whether you are in the planning phase of tunnel construction or about to bid on a project, our engineers can help you identify the best solution to achieve your objectives. For more information, complete our on-line inquiry form or contact The Robbins Company at your nearest location.
